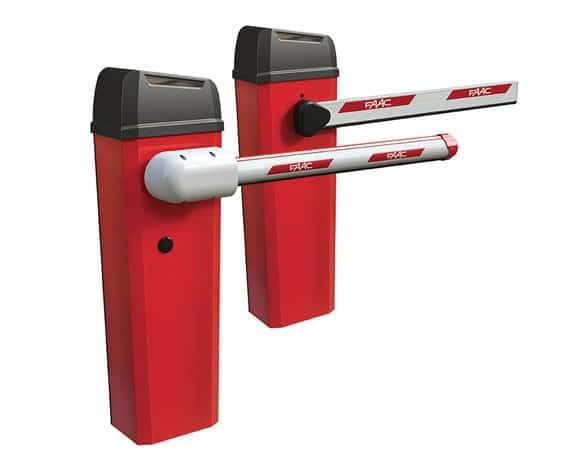

FAAC B614 Automatic barrier, 24V
- Beams up to 5m
- Under 2s opening
- Continuous use
- IP55
The FAAC B614 is a 24V automatic barrier for beams up to 5m. It opens in under 2 seconds (3m beam) and is rated for continuous use. FE Automation supplies it in Singapore with supplier warranty.
Not sure which barrier fits? Tell our team the width of your entrance and we'll confirm the model.
B614 or B680H?
It comes down to the width of the entrance. Beams up to 5m: B614. Wider entrances, up to 8m: B680H.
FAAC B614 specifications
| Spec | FAAC B614 |
|---|---|
| Power supply | 220–240V~ 50/60Hz |
| Motor | 24V, with brushes |
| Max power | 165 W |
| Max torque | 300 Nm (thrust) · 63 Nm (45°) |
| Encoder | Incremental, built into the motor |
| Deceleration | Electronic and mechanical |
| Beam type | Rectangular or round |
| Max beam length | 5 m |
| Opening time | Under 2 s (80°, 3m beam) |
| Material | Steel, deep zinc treatment (15µm) + polyester powder coat |
| Protection class | IP55 |
| Operating temperature | -20°C to +55°C |
| Use frequency | 100% (continuous use) |
| Weight | 40 kg |
| Dimensions (LxDxH) | 360 x 250 x 1163 mm |
| Control board | E614, built in |
What the FAAC B614 does well
- Anti-crushing safety, with an encoder built into the motor.
- Adjustable speed and smooth movement.
- Control board in the top of the cabinet, for easy servicing and programming.
